Sliding Doors
Rimadesio Daimon Sliding Door
Different glass and aluminium finishes allow the screen to become either a subtle room divider or a stronger architectural feature within the interior.
What makes the Daimon sliding door different?

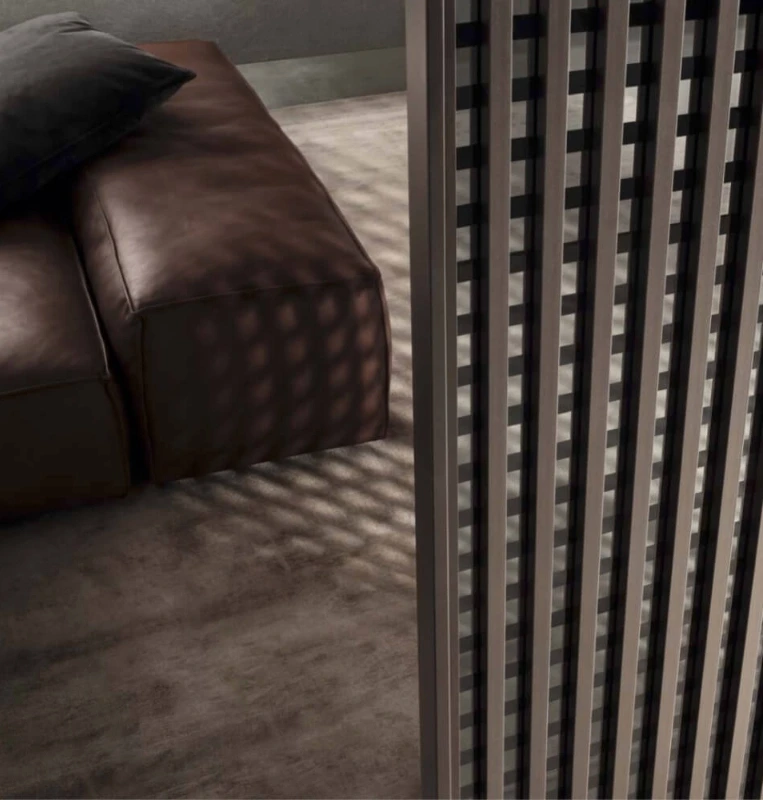

Daimon is distinguished by the grid formed across its glass surface. The combination of aluminium ribs, decorative horizontal lines and selected glass finish gives the door a more graphic presence than a plain glass partition.
The sliding mechanism is shared with other doors in the Rimadesio collection and is designed to keep the track and working components visually discreet.

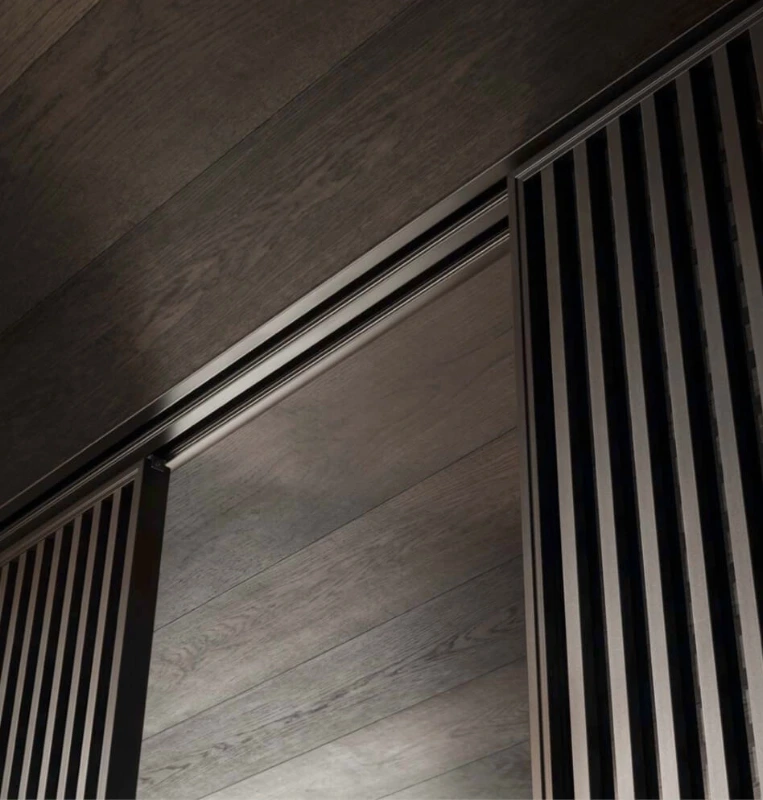

Ceiling-rail cover profiles can be finished to match the door structure or painted on site to blend with the surrounding ceiling.
How much does a Rimadesio Daimon sliding door cost?
A Rimadesio Daimon sliding-door arrangement starts from £10,500 + VAT for the example specification shown below.
Example configuration
Three sliding panels
Overall dimensions: H 2,400 × W 3,000 mm
Three-track flush-fit ceiling rail
Nero aluminium frame and handles
Transparent glass
£10,500 + VAT
Specialist services and installation are not included in this example price.
What affects the final price?
The final quotation will depend on the number and dimensions of the panels, glass and aluminium finishes, track configuration, handle or locking requirements, and the installation requirements of the property.
How is the Daimon sliding door constructed?
- Glass panel — 8 mm laminated or tempered glass.
- Door panel structure — extruded aluminium.
- Side runner — aluminium.
- Jamb — MDF clad in aluminium.
- Cover jamb — aluminium.
- Lower joint pin — pressed-steel connection for the panel.
- Floor pin — patented retractable fitting.
- Handles — extruded aluminium.
- Sliding carriage.
- Soft-motion brake.
Specification Sheets
What sizes and handle options are available?
Panel dimensions
Each Daimon panel is manufactured to the specified opening dimensions, within the limits below.
Panel specification and Dimension.
- Minimum sliding-panel width – 500 mm.
- Minimum fixed-panel width -320 mm.
- Maximum panel width – 1,500 mm.
- Maximum panel height – 2,925 mm.
Every Rimadesio sliding door panel is custom-made to meet the architectural requirements of the client’s property.

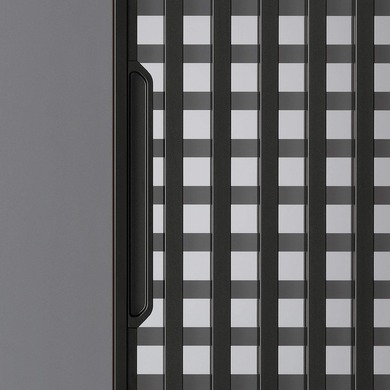

Handles
- Handle for single- or double-sliding-door configurations.
- Alternative handle for single- or double-sliding-door configurations.
- Handle with tumbler lock.
- Handle with keyed lock.
View the Daimon technical specification.
