Rimadesio Sliding Doors

Siparium

Rimadesio Siparium is a made-to-measure glass and aluminium door system available in sliding, folding and swing configurations. Different opening types, rail arrangements, glass finishes and handles allow the system to be planned around the room and the way the opening needs to work.

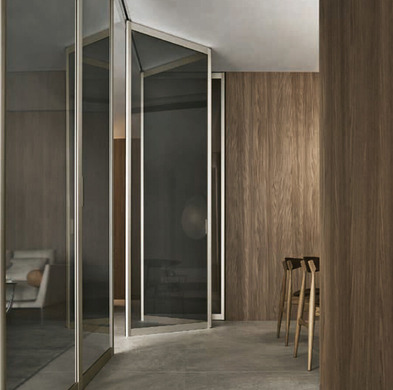

Open Rimadesio Siparium folding glass doors in a wood-panelled interior, showing the slim aluminium frame and top rail.

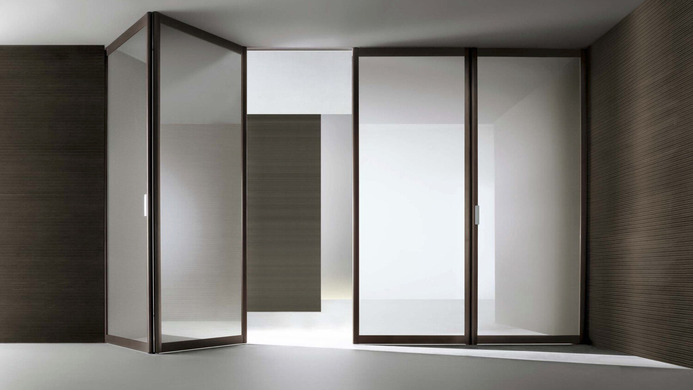

Rimadesio Siparium folding glass doors partly open within a dark timber and white interior.

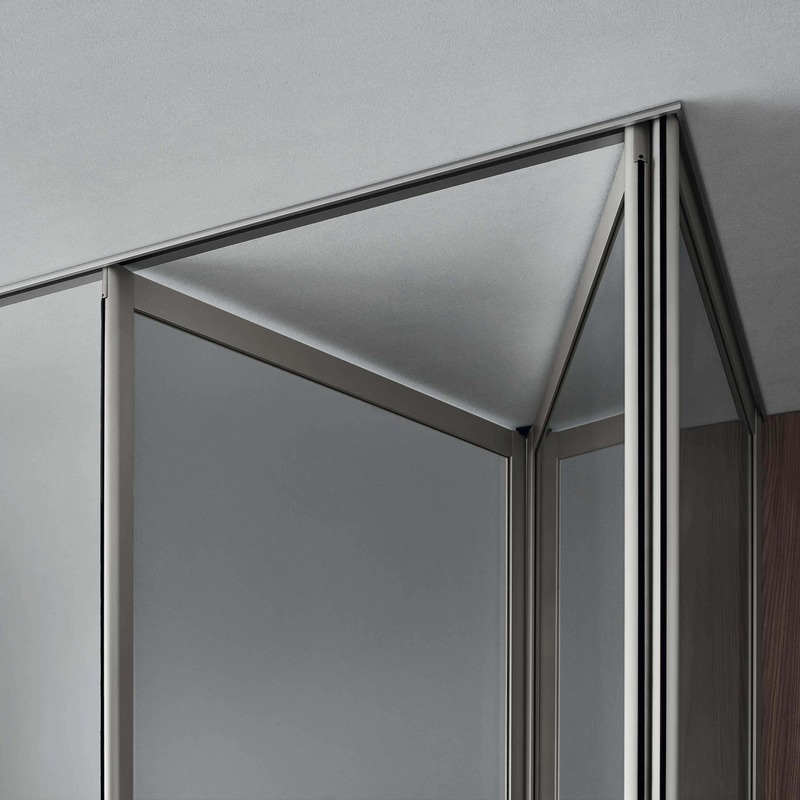

Close-up of the upper corner of a Rimadesio Siparium door, showing the aluminium frame and ceiling rail.

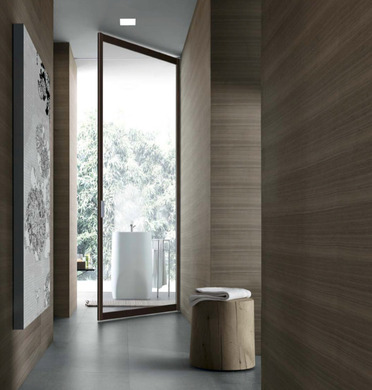

Rimadesio Siparium Sliding Door 2

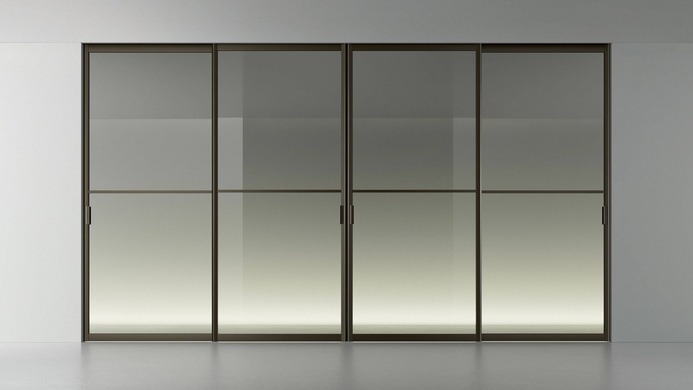

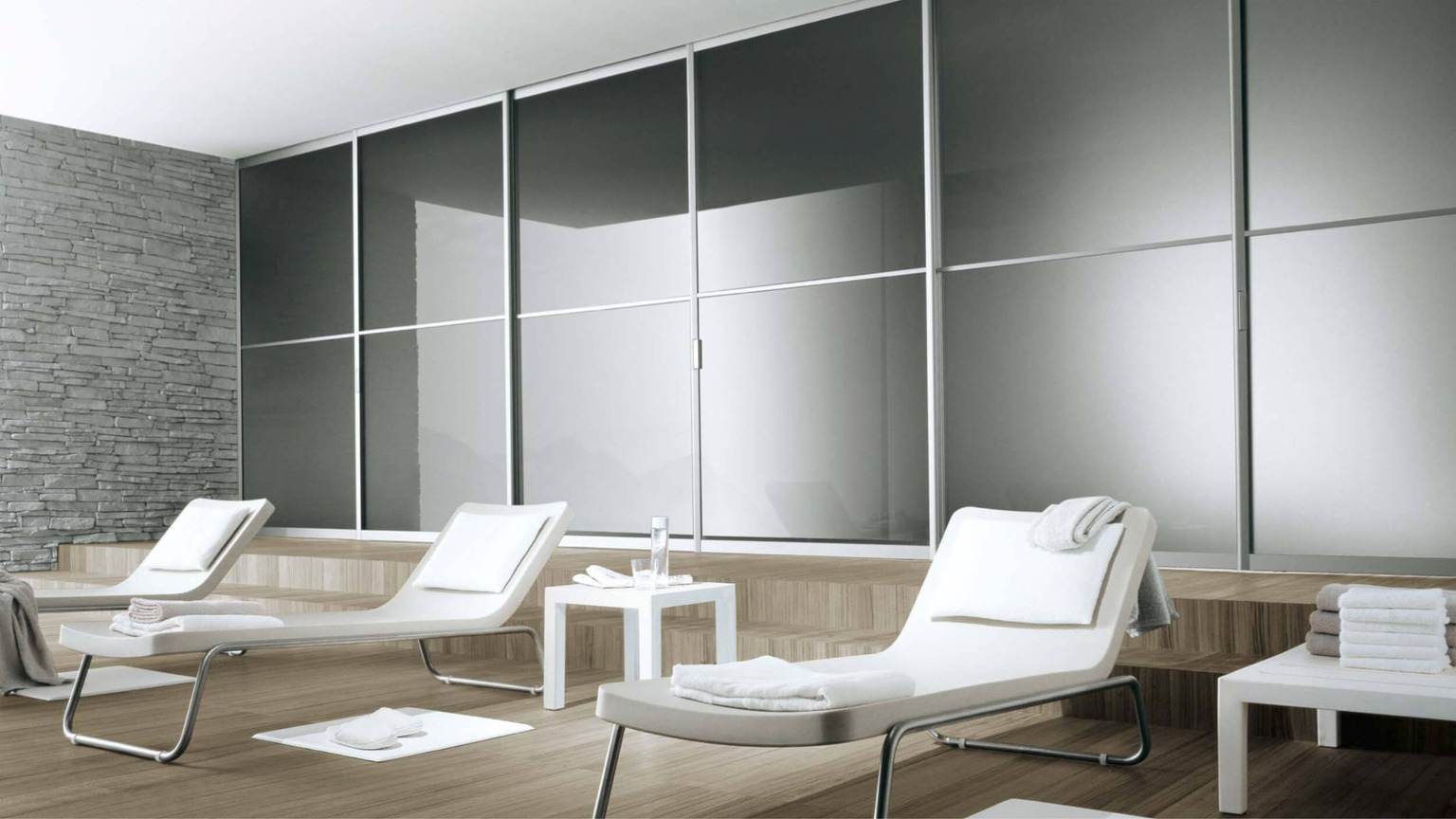

Wide view of a Rimadesio Siparium glass door system dividing a contemporary interior.

cost and configuration

How much is the Siparium Door?

RIMADESIO SIPARIUM FROM £9,500 + VAT*

Cost based on a 3-panel arrangement, 2400 mm high × 3000 mm wide, hung from a three-track flush-fit ceiling rail. Frame Structure and Handle – Aluminium / Glass – Transparent.

Because Siparium is made to measure and can be specified with ceiling-, wall-, or recessed-track sliding systems, pricing varies according to the chosen configuration and style.

*Cost does not include specialist services and installation.

Siparium construction

How the door system is built

1 Tempered single glass: 6 mm

2 Laminated glass: 3+3 mm.

3 Door panel. The structural section in extruded aluminium

4 Side runner in aluminium

5 Jamb in MDF covered with aluminium

6 Cover jamb in aluminium

7 Lower joint pin in pressed steel for the panel’s connection

8 Patented retractile floor pin

9 Handles in extruded aluminium

10 Sliding carriage

11 Soft motion brake

Specification Sheets

What options are there?

Panel Dimensions

Every Rimadesio Siparium bi-fold/swing door system is custom-made to meet the architectural requirements of the client’s property.

Sliding panel min-width 500mm

Fixed panel min-width 320mm

Max panel width of 1500mm

Maximum height of 2925mm

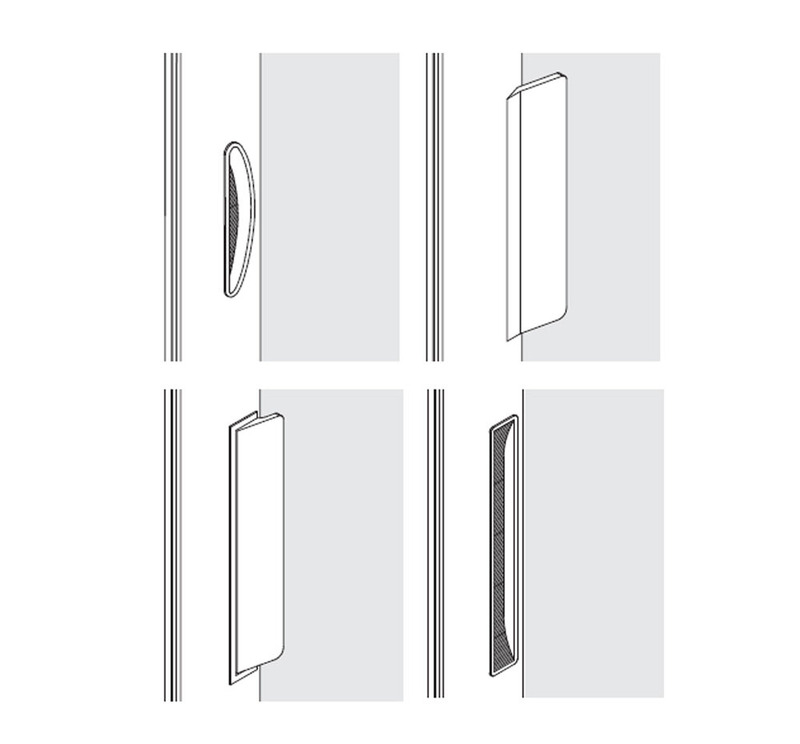

Handles

Top Left. Curved recess for single/double door

Top Right. Rectangular for single/double door

Bottom Left. Fold for single/double door

Bottom Right. Straight recess for single/double door

Specification Sheets

What options are there?

For further documentation to support the specification of Rimadesio Siparium folding doors, click on the button below.

More Information
