Rimadesio Stripe Sliding Doors
The graphic pattern gives the system a stronger architectural presence while retaining light and views between adjoining spaces. Panel dimensions, handles and finishes can then be selected to suit the opening and wider interior scheme.
How much does a Rimadesio Stripe sliding door cost?
Guide price: from £9,100 + VAT*
Based on a three-panel arrangement, 2,400 mm high × 3,000 mm wide, suspended from a three-track flush-fit ceiling rail.
Frame, structure and handle: Nero (black)
Glass: Transparent
*Cost does not include specialist services and installation.
Components

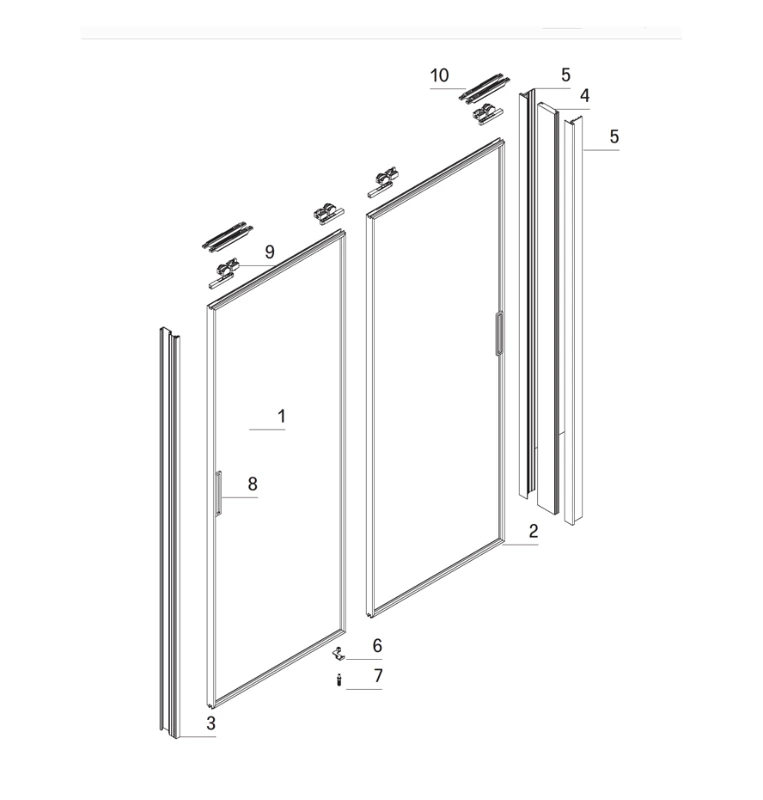

How is the Rimadesio Stripe sliding door constructed?
1 Laminated or tempered glass of 8mm thickness.
2 Door panel. The structural section in extruded aluminium
3 Side runner in aluminium
4 Jamb in MDF covered with aluminium
5 Cover jamb in aluminium
6 Lower joint pin in pressed steel for the panel’s connection
7 Patented retractile floor pin
8 Handles in extruded aluminium
9 Sliding carriage
10 Soft motion brake
Specification Sheets
What options are there?
Panel sizes
- Sliding panel minimum width: 500 mm
- Fixed panel minimum width: 320 mm
- Maximum panel width: 1,500 mm
- Maximum panel height: 2,925 mm

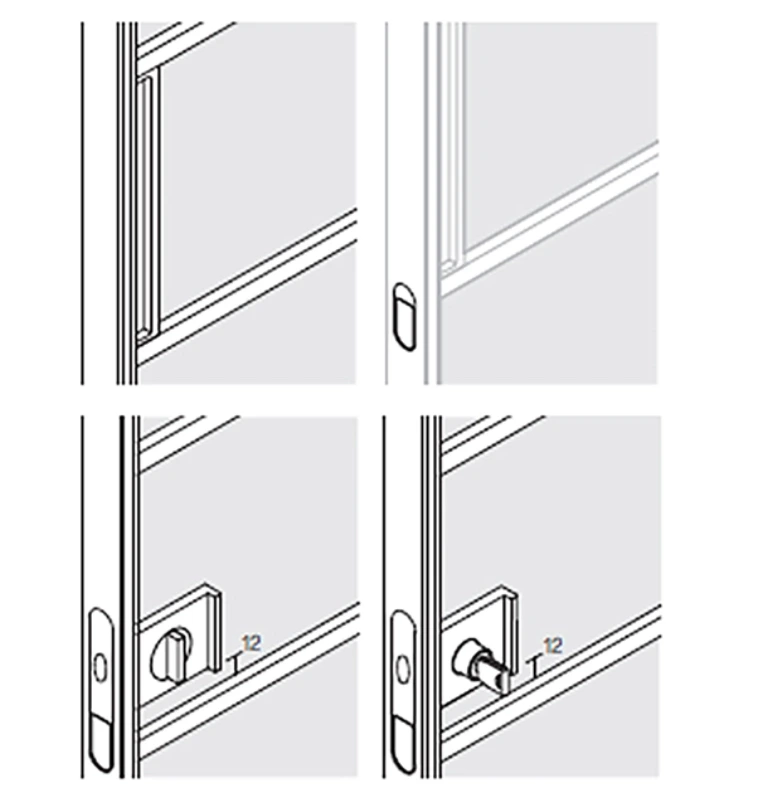

Handles and locks
Top Left. For single/double door
Top Right. Optional door pull for double doors
Bottom Left. Door with a tumbler lock
Bottom Right. Door with key
For further documentation to support the specification of a Rimadesio Stripe sliding doors, click on the button below.
