Rimadesio Sail Sliding Door

Q: What Sliding system options are there?

Sail can be installed using ceiling-mounted, recessed or wall-mounted rails. Ceiling systems can accommodate one, two, three or four tracks depending on the number and movement of the panels.

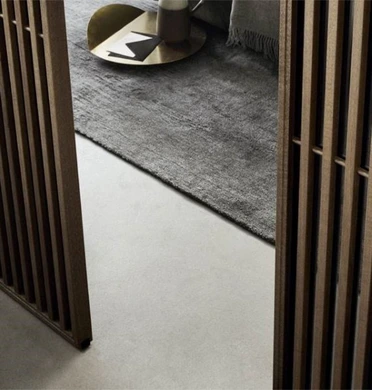

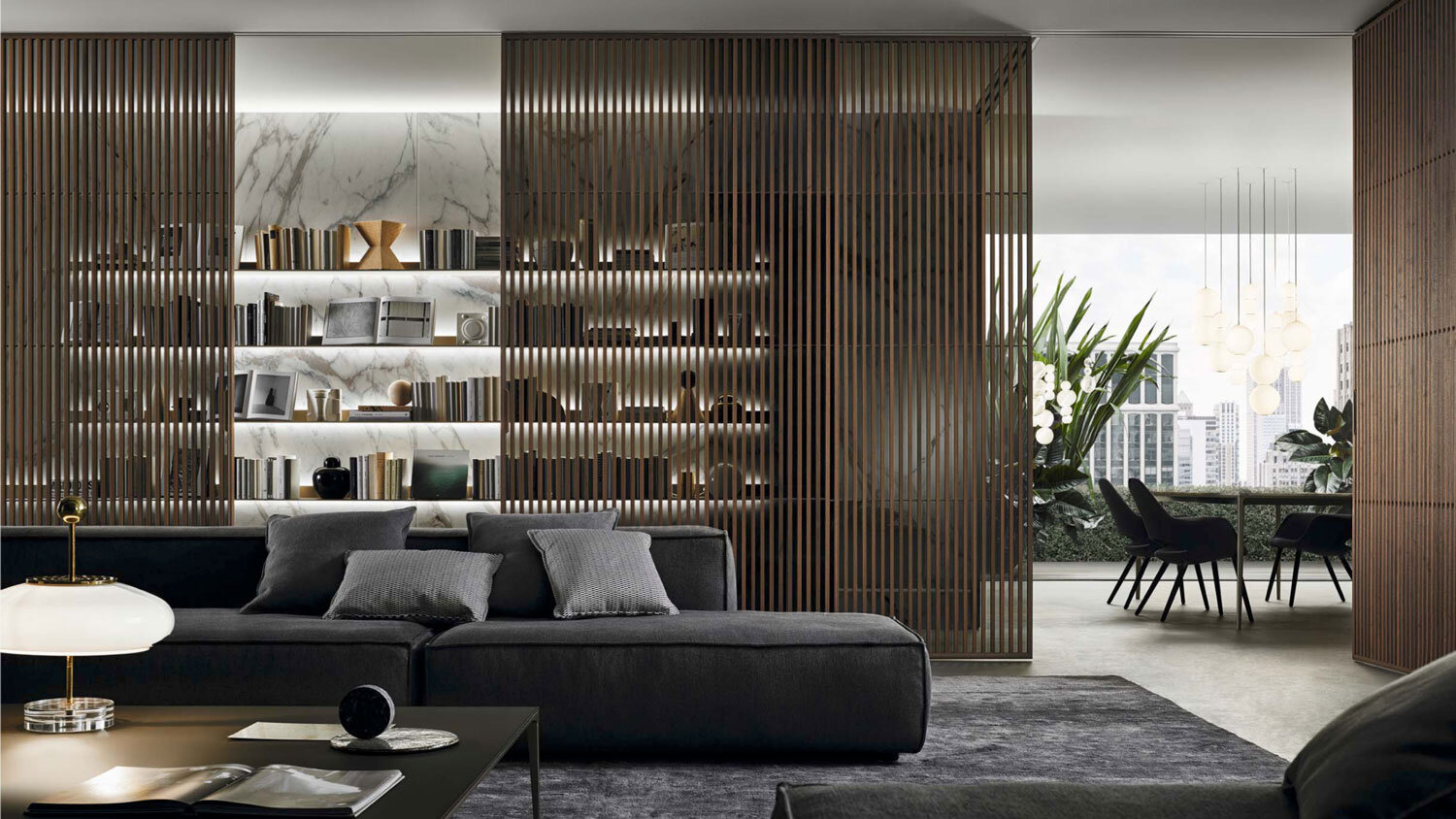

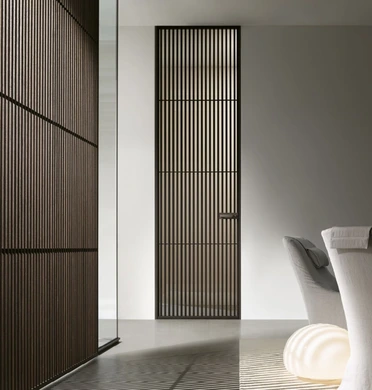

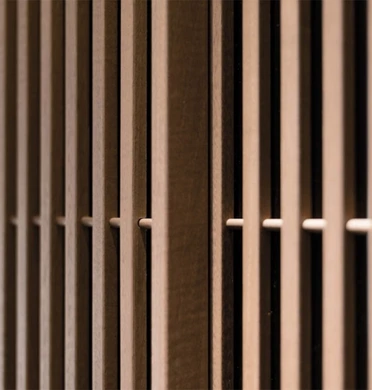

Fine vertical aluminium ribs give Sail its distinctive character, filtering views while still allowing light to pass between adjoining spaces. Inspired by traditional Japanese partitions, the design brings rhythm and architectural definition to a room without creating a solid visual barrier.

cost

How much does a Rimadesio Sail sliding door cost?

Rimadesio Sail starts from £9,000 + VAT.

This guide price is based on a three-panel arrangement measuring 2400 mm high x 3000 mm wide, suspended from a three-track flush-fit ceiling rail. The example uses a Nero (black) frame and handle with transparent glass.

Specialist services and installation are additional.

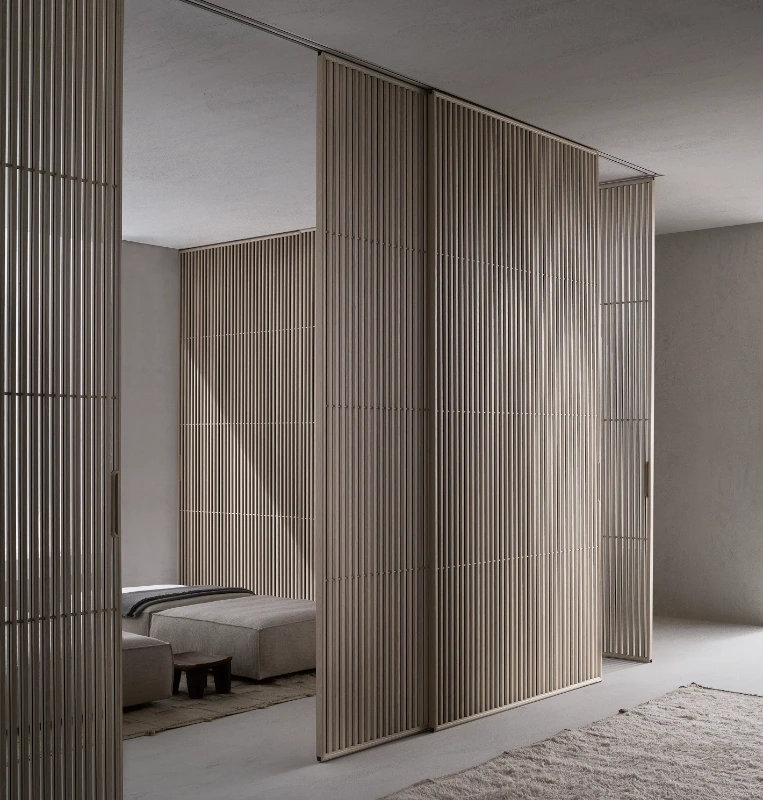

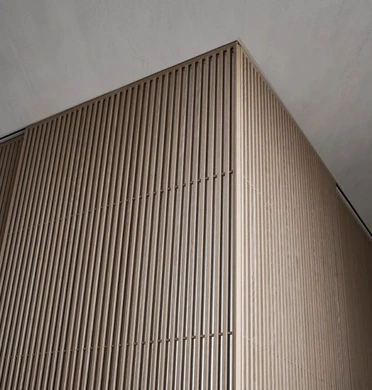

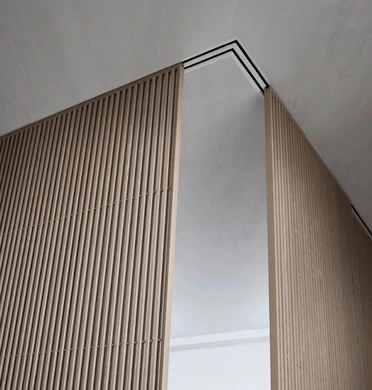

The vertical arrangement of the aluminium ribs draws the eye upwards, giving the partition a strong architectural presence while emphasising the movement of the panels.

components

Sail construction and components

8 mm laminated or tempered glass
Door panel with an extruded-aluminium structural section
Aluminium side runner
MDF jamb clad in aluminium
Aluminium cover jamb
Pressed-steel lower joint pin for the panel connection
Patented retractable floor pin
Extruded-aluminium handles
Sliding carriage
Soft-motion brake

Exploded technical diagram of the Rimadesio sliding door showing the glass panel, aluminium frame, jamb, floor pin, handle, sliding carriage and soft-motion brake

Specification Sheets

What options are available?

Structure finishes – 5 aluminium or 3 real-wood finishes
Handle finishes – 5 aluminium or 2 real-wood finishes
Lacquered glass -Ecolorsystem, glossy or matt, 78 colours
Metalized glass – Glossy or matt, 14 colours
Transparent glass Extra-clear, clear, grey, bronze, light reflective, grey reflective
Rail installation types Ceiling, built-in, or wall-mounted

Choose from more than 100 glass options, including transparent, reflective, satin, mesh, lacquered, and metalized finishes.

Technical drawings of Rimadesio door handle options, including pull handle, tumbler lock and key-operated lock configurations

Planning a Sail installation

Want to ask us a specific question you want to ask?

You can always call us directly on 01225 433511 or email us at info@hobsonschoice.co.uk

What are the panel dimensions?

Each Sail panel is made to the dimensions required for the opening, within the system limits below.

Sliding panel minimum width: 500 mm
Fixed panel minimum width: 320 mm
Maximum panel width: 1,500 mm
Maximum panel height: 2,925 mm

options are available for the Panel sizes?

Sail sliding panels are made to suit the individual opening. Panels can be specified up to 1500 mm wide and 3180 mm high. At the full 3180 mm height, maximum panel width is 1250 mm.

What Sliding system options are there?

Sail can be installed using ceiling-mounted, recessed or wall-mounted rails. Ceiling systems can accommodate one, two, three or four tracks depending on the number and movement of the panels.
